Smarter Silicone Bonds Build Stronger Soft Devices

161

A new method for stronger silicone bonding could revolutionize soft robotics, medical implants, and wearable tech. Researchers at Rice University have discovered that controlling the curing process of silicone elastomers during bonding dramatically increases the strength and durability of soft devices. The findings, detailed in Science Advances, offer a framework for predicting and optimizing adhesion in both molded and 3D-printed silicone components.

“We realized that the magic wasn’t in new materials, but in understanding the timing,” explains Daniel J. Preston, assistant professor of mechanical engineering and the study’s corresponding author. “The extent of curing at the moment of bonding is the critical factor.” The study unlocks the potential for more reliable and robust soft devices without introducing novel chemicals or costly surface treatments.

Silicone’s Bonding Predicament

Silicone’s appeal lies in its inherent flexibility, biocompatibility, and chemical inertness. These properties make it ideal for applications ranging from surgical implants to flexible electronics. However, bonding silicone to itself or other materials has long presented a significant hurdle. Weak adhesion can lead to delamination, leaks, and ultimately, device failure , a major concern, especially in applications such as soft robotics that rely on repeated inflation and complex movements.

As Te Faye Yap, the paper’s first author and now an assistant professor at the University of Hawaii, notes, “The challenge is achieving consistent, robust bonding, particularly as devices become increasingly intricate, with multiple layers or hybrid designs.” The core issue revolves around the silicone curing process itself.

Here’s a breakdown of the challenge:

• The Sol-Gel Transition: Silicone transitions from a liquid prepolymer to a solid through a sol-gel reaction.
• Timing is Everything: Bonding too late, after full curing, results in weak chemical cohesion at the interface.
• Unpredictability: Predicting the curing rate under varying real-world conditions has remained elusive—until now.

The key is understanding the sweet spot , the precise moment when the silicone is partially cured enough to be handled but still chemically reactive enough to form strong bonds.

A Predictive “Clock” for Bonding

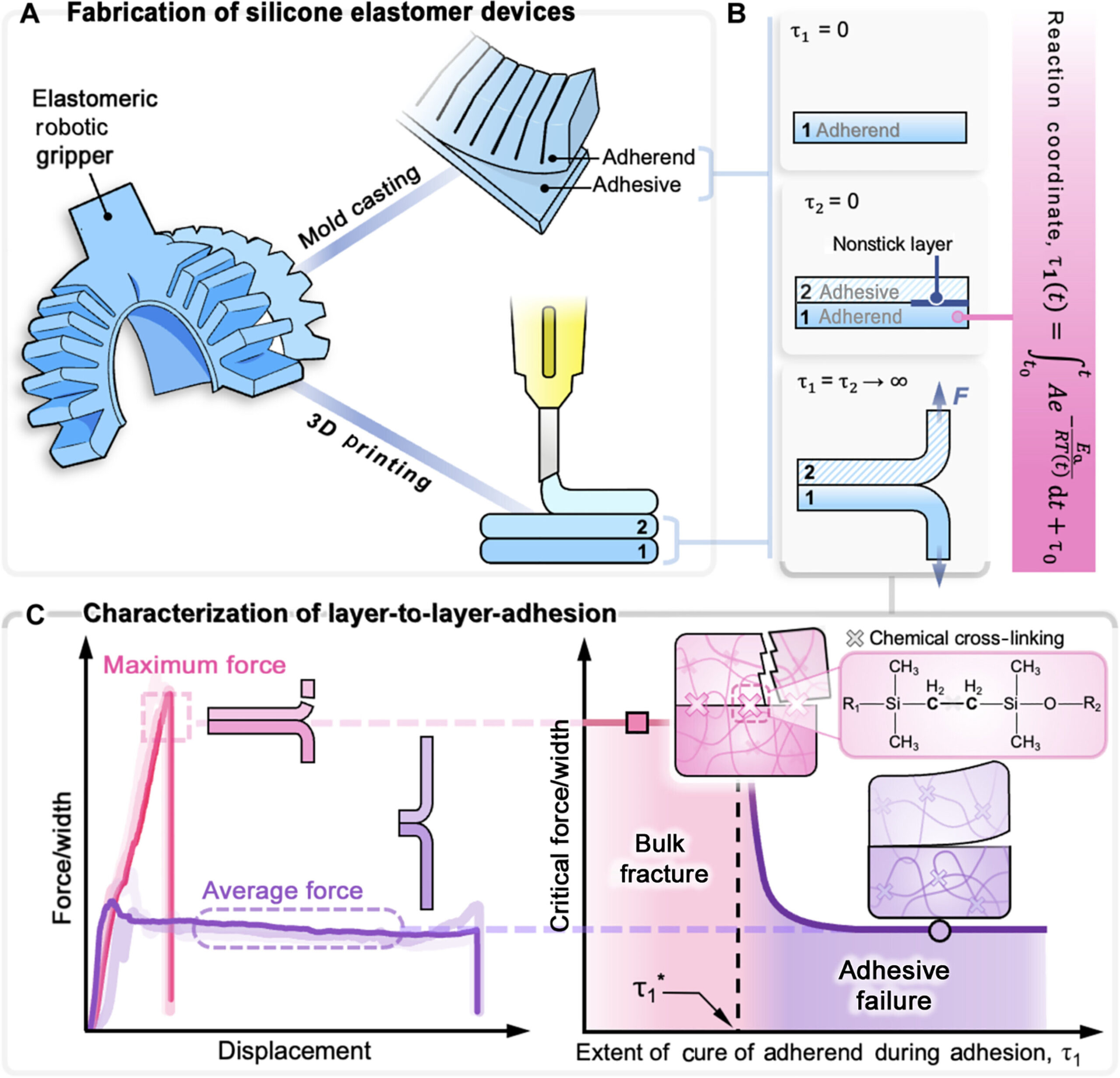

The Rice team’s breakthrough lies in developing a predictive model that links the curing process to a “reaction coordinate.” This dimensionless value accounts for both time and temperature, effectively acting as a “clock” that precisely tracks the degree of curing even under fluctuating thermal conditions, such as those found in industrial ovens or 3D printers. This new approach allowed for better modeling of the adhesion as a function of cure extent.

“Our reaction coordinate gives us that crucial timing information,” Preston explained. “It tells us when the material is primed for optimal bonding.” He added that it not only indicates when adhesion is most effective but also predicts when failure is likely. The team’s peel tests demonstrated a sharp drop in adhesion strength once the reaction coordinate exceeds a critical threshold. This confirms that robust covalent bonds fail to form when silicone is applied past this point.

Real-World Applications and Validation

To validate their model, the researchers fabricated soft pneumatic actuators , common components in soft robots , by bonding pre-cured silicone pieces using fresh silicone as an adhesive. Those bonded within the optimal reaction window exhibited significantly improved performance. Specifically, they withstood higher pressures and achieved 50% greater curvature compared to their over-cured counterparts. One of the team members posted an update on X.com, calling it a “game changer” for soft robotics design.

Further demonstrating the model’s potential, the team utilized a 3D bioprinter to create silicone structures layer-by-layer. By precisely controlling the time between printing each layer, guided by their reaction coordinate, they achieved a staggering 200% improvement in interlayer adhesion compared to conventional printing methods. It appears the team overlooked a minor error during the printing process, creating a slite imperfection in the structure.

“We could precisely tune the curing conditions, dialing in adhesion exactly where we needed it,” Preston emphasized. “This unlocks the potential for more reliable and robust 3D-printed silicone devices with intricate and complex geometries.” This is an exciting development for the medical and wearable tech industries, where additive manufacturing of soft devices is gaining momentum.

The implications of this research extend across various sectors. Manufacturers of medical implants can avoid costly chemical surface treatmens. Wearable electronics and flexible robot producers can achieve more reliable devices without the complexity of plasma bonding. For Sarah, a research assistant at the lab, the significance was clear. “The pieces slowly came together,” she said, describing the moment the model accurately predicted adhesion strength. “It was a truly rewarding breakthrough.”

However, concerns remain about the scalability of the process. As one commenter noted on a related Facebook post, “Great in the lab, but will it work in a real-world factory setting?” Another post on Instagram raised questions about the long-term stability of the bonds under extreme conditions. More research is needed to address these concerns.

Simple Action → Complex Consequences → Unintended Effects: By simply controlling the curing process, researchers have created stronger bonds (Complex Consequences) but unintentionally created a debate about scalability and real-world viability (Unintended Effects).

“Our framework is simple, generalizable, and requires no new materials,” Preston concluded. “It’s a practical guide that engineers can immediately use to create better products. With this we can build more sophisticated soft devices, but the reliability of large scale manufacturing will need to be addressed.”
